We are the leading supplier of all Electrical and Electronic automation product in Punjab. We are the authorised dealer of EAPL Production Counters
Din sized enclosure for panel mounting.
Wide Voltage range
Front / Rear reset facility provided.
Hold / Restart options (selectable) during power failure.
Input signal from proximity switch ( NPN / PNP type) or Potential free (zero volt) signal from limit switch, relay o/p etc

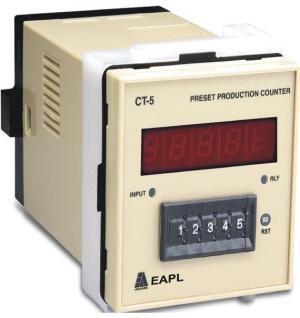

CT-5: Digital, single window 5 digit 7 segment red LED display with up counting for process value.
Preset Counts can be programmed with the help of thumbwheel switch
H3CT-5U : Digital, single window 5 digit 7 segment red LED display with up counting for both process value and set value
Input sensitivity – programmable (1-100Hz)
Internal Resettable fuse for protection of device against voltage fluctuations. Digital display will blink whenever voltage exceeds specified voltage range. Switch off the unit for sometime & then switch on when voltage returns to normal.
Overall: CT-5 – 72 x 72 x 128mm, H3CT-5U – 48 x 48 x 115mm (W x H x D)
Paper board counting, bag counting, bottle counting, relay change over counting, breaker panels, stroke counting in granite cutting m/c and many more
Model Function Source Voltage Range Output Data Sheet
CT-5 Preset counter (LED Display), 5 digits 85-270V AC/DC 1-99999counts 1 c/o, 5A Relay Click Here
H3CT-5U Preset counter (LED Display), 5 digits 85-270V AC/DC 1-99999counts 1 c/o, 5A Relay
